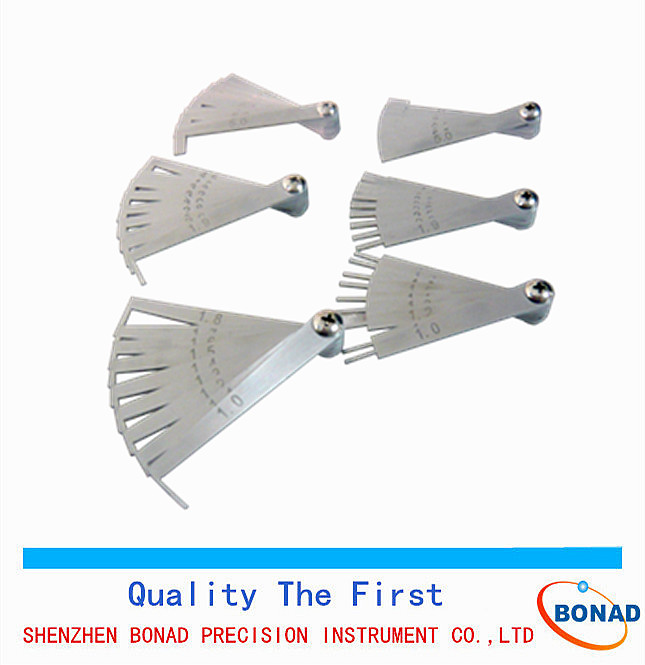

IEC60065 Creepage Antistatic Distance Test Cards

Introduction:

1.The creepage distance card measures creepage and clearance distance, distance through insulation and other spacing. The set can be used for compliance testing of electronic equipment and other products as required by all international standards.

2.Creepage distance test card is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specification made according to the requirements.

3.Creepage distance test card or feeler gauge is made of stainless steel.

Product Description:

1. According to : IEC60335.1-2006 , IEC60601.0-2005 , IEC60065-2005,IEC600598.1-2008

2. Creepage Distance Test Card are used for testing creepage distance and clearance for household and similar electrical products or other electronical accessories .

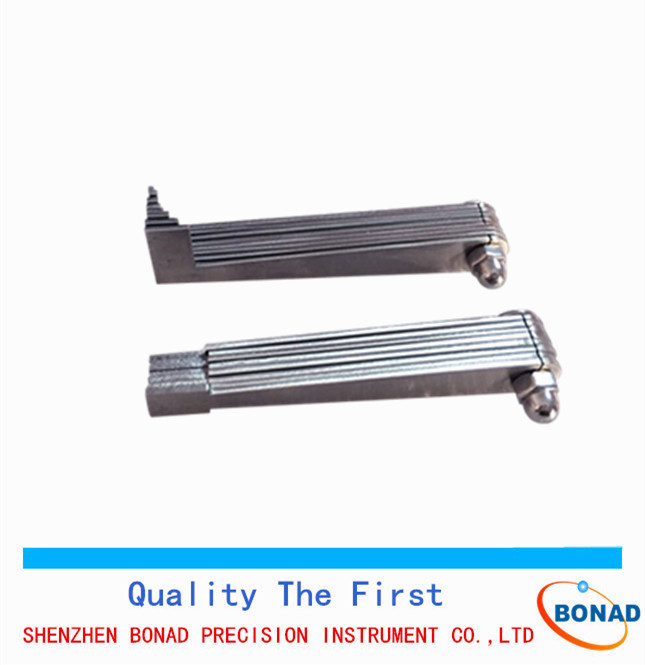

3. Type: Straight, Bend (according to test condition)

Specifications:

BND-8: 1.0,1.5,2.0,2.5,3.0,4.0,5.0,6.0,8.0mm

BND-PD27:1.0,1.1,1.2,1.3,1.4,1.5,1.6,1.7,.8,1.9,2.0mm

2.5,3.0,4.0,4.5,5.0,5.5,6.0,6.5,7.0,7.5,8.0,8.5,9.0,10.0mm

Notice: Provide Customized Size
