IPX5 and IPX6 Stainless Steel water jet nozzle with calibration
IPX5 and IPX6 Stainless Steel water jet nozzle with calibration
IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100L/min.

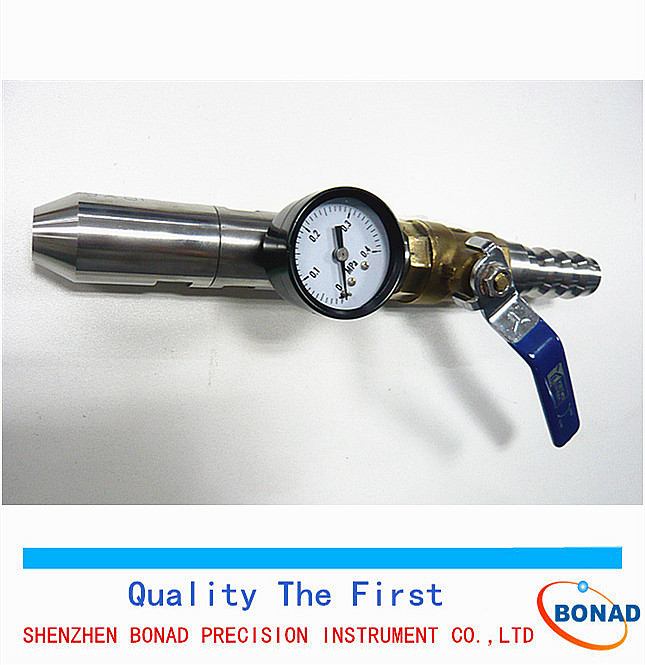

The IPX5-6 Jet Nozzle consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
IEC60529, 60598-1, 60335-1, EN60335-1, 60950,60529, GB4208,2423., 7000.1 GB/T4942.2, 4706.1
item | |
Model | TB-TPX5/X6 |
IPX5 aperture | 6.3mm |
IPX6 aperture | 12.5mm |
IPX5 water flow rate | 12.5±0.625L/min |
IPX6 water flow rate | 100±5L/min |
Note:
1.Adjust the water flow according to regulation.
2.Test the product in 2.5m-3m in front of the spray.
