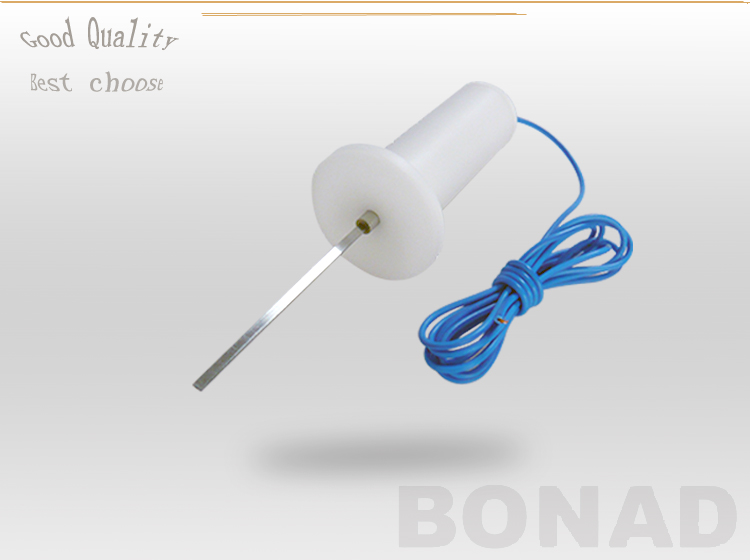

IEC60884 IEC61032 Socket protective test probe 14B with 20N

BND-14B

Technical Parameters:

1, Test Probe Length:80mm

2,Probe Diameter:1.0mm

3,Material:The handle is made of nylon, tip is made of hardened steel

4,Standard: IEC60884 ,IEC61032 Fig.10

1 Product Explanation

The socket protection door test needle probe meets the standard requirements of IEC 60884&GB2099 , mainly used for checking the electronic shock safeguard and the normal operating function of socket with protection door. According to the related requests ,a set of test probe has two sticks, respectively with a 1N and 20N thrust. This manual focuses on against electric shock protection test.

2 Method of Application

First, use the 20N socket protection door test probe to exert a 20N thrust to the most unfavorable position of the protection door at three directions in sequence, at the same position of three directions with a 20N thrust for about 5 seconds, the metal part cannot touch the live parts of the socket.

NOTE: During the operation, the probe cannot be rotated. When the probe changes from one direction to another direction, do notexert forces, and the probecan't pulled out.

Then ,use the 1N socket protection door test probe and exert a 1N force to three directions. Each direction for about 5 seconds, the metal part can't touch the socket with the electric components.

NOTE: This test requires independent touch, after each touch the probe must be pulled out.
